Insulated Roofs

Dura-Bilt has two styles of insulated roofs for you to choose from, Dura-Therm and Dura-Lock.

Both feature thick, laminated polystyrene roof panels to provide excellent strength and insulating properties.

The lamination process seals the roof panels, top and bottom, with seamless, pre-painted aluminum. The result is a roof that’s tough on the outside and handsome on the inside.

Protect yourself from the elements and extend your outside time.

Dura-Therm Insulated Roofs

Dura-Bilt roof and awning components are designed to work as a single unit. This is how we achieve our outstanding wind and snow load capabilities.

The superior design of our mounting rail, front header, and support columns all work together to produce the additional strength for varying weather conditions.

The Dura-Therm Insulated Roof features 2″ thick laminated roof panels. These panels are joined with Dura-Bilt roof girders to give excellent snow load strength. This roof helps insulate your Sunroom or Screen Room from hot and cold temperature extremes.

Dura-Therm 2″ roofs are available in white or cream, and the roof panels are two feet wide. Dura-Therm roof projections are sold in one foot increments from 5 to 15 feet.

Dura-Lock Insulated Roofs

This rock solid roof is available in 3″, 4″, and 6″ thicknesses. Our unique roof panel locking system results in a ceiling that looks virtually seamless. Each roof panel is 4′ wide.

The optional Fan Beam Roof Panel provides an internal metal raceway for wiring and support for a ceiling fan and lights.

Dura-Bilt Roofs and Awnings are designed to extend to the left or right after initial installation. This allows you to expand your roof or awning in the future.

Click any photo for full size view

Clay Color Dura-Lock Roof

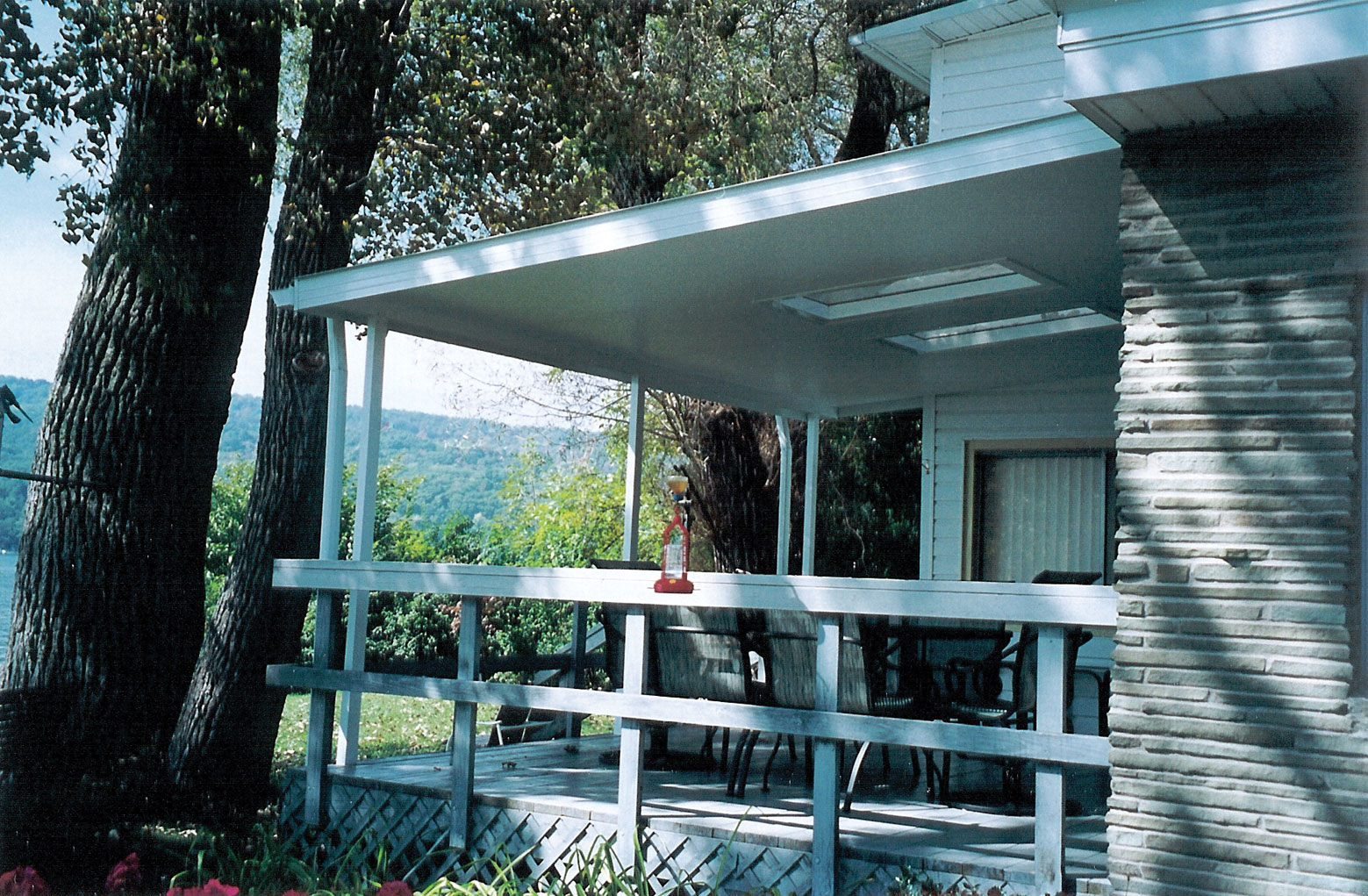

The vented skylight (24″ x 48″) is made with high quality materials and features impact resistant tempered safety glass that will never oxidize and become “cloudy” like poly-carbonate varieties.

You will need to order one (1) crank handle per roof with the venting skylight

Dura-Lock Insulated Roof with Railing and Pillar Columns

All Season Sunroom with 4″ Dura-Lock Gable Roof

Support Columns (Optional Extra)

Corner Scroll Columns ………. 8” x 8”

Flat Scroll Columns …………… 8”

Dura-Post Columns …………… 2” x 2”

Deluxe Post Columns ………… 3” x 2”

Pillar Columns …………………… 4” x 4”

All columns are available in white. Cream and clay columns are available in certain styles.  Please call us at Dura-Bilt to discuss what options are available in each style. All columns are available in several heights. In addition, Decorative Arched Scrolls may be added to enhance the appearance of your addition.

Scroll Column (Corner)

Scroll Column (Flat)

Dura-Post Column

Deluxe Post Column

Pillar Column
